QualiPhyer Tools

Physical Layer Analysis Software

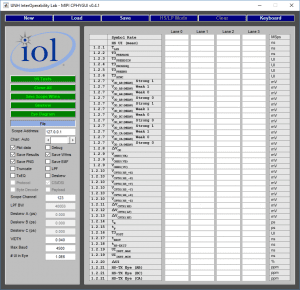

QualiPhyer MIPI C-PHY GUI Screenshot

QualiPhyer is a family of software packages used to test a product’s conformance to IEEE 802.3™ and MIPI Alliance electrical and optical standards for Ethernet and MIPI devices. These packages can be used to control oscilloscopes and traffic generators over Ethernet or GPIB connections to test the physical layer characteristics of devices. The software processes waveforms from the scopes to produce results based on algorithms developed at the UNH-IOL.

QualiPhyer for MIPI:

QualiPhyer C-PHY GUI and D-PHY GUI effectively test MIPI devices against the C-PHY v1.0 and D-PHY v1.2 versions of the MIPI Alliance C-PHY and D-PHY CTS. These packages can confidently perform D-PHY or C-PHY HS-TX and LP-TX conformance tests. The tool GUIs enable easy viewing of test results, which can be exported in various formats. Measurement plots can also be exported to either PNG or EMF vector formats. Visit our online store if you're ready to order QualiPhyer C-PHY for MIPI now!

QualiPhyer for Ethernet:

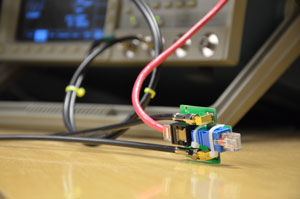

The Ethernet packages for QualiPhyer are designed to test an Ethernet PHY against its respective clause of the IEEE 802.3 standard. The 100BASE-TX package allows users to test the transmitter of their 100BASE-TX capable devices for differential output voltage, rise/fall time, duty cycle distortion, waveform overshoot, jitter, return loss, and transmit clock frequency deviation.

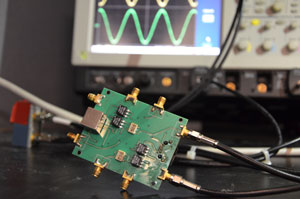

The 1000BASE-T package allows users to test the transmitter of their 1000BASE-T capable devices for voltage template conformance, return loss, jitter, distortion, clock frequency, and common-mode output voltage. Both packages also provide an information eye diagram to represent jitter visually. Results can be viewed in the GUI, and they can also be exported to a CSV or HTML file for access outside of the tool. Figures are saved whenever possible for later viewing inside or outside the tool.

The QualiPhyer packages provide measurements using T&M equipment from multiple providers including Anritsu, Keysight, Rohde & Schwarz, Tektronix, and Teledyne Lecroy.

Request a Quote

Benefits:

  • Automated testing
  • Industry-recognized test methodologies available for use in-house testing
  • Analysis of captured waveforms
  • Verifies specification conformance
  • Plot Generation for debugging and analysis

QualiPhyer Options



QualiPhyer D-PHY GUI

For MIPI

QualiPhyer C-PHY GUI

For MIPI

QualiPhyer 100BASE-TX

For Fast Ethernet

QualiPhyer 1000BASE-T

For Gigabit Ethernet

MIPI D-PHY CTS


MIPI C-PHY CTS
Clause 25 PMD
Clause 40 PMA

Request a Quote
